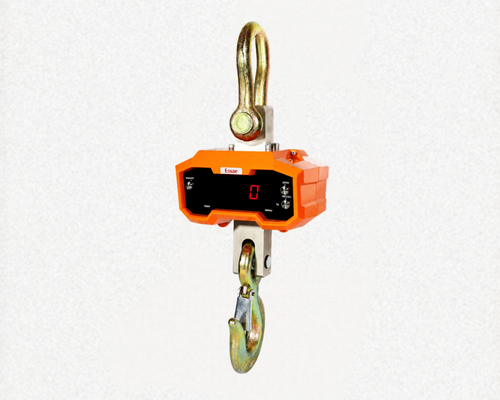

Industrial Crane / Hanging Scales are designed for accurate and safe weighing of suspended loads in industrial, warehouse, logistics, shipping, and material handling environments. Built for heavy-duty applications, these scales provide reliable measurement results while handling large and bulky goods during lifting and transportation operations. Equipped with durable construction, high-capacity load sensors, and clear digital displays, crane and hanging scales ensure stable performance in demanding working conditions. Suitable for factories, steel plants, freight operations, and loading areas, these weighing solutions help improve operational efficiency, safety, and accurate load management across industrial applications.
Explore crane and hanging scale models with technical specifications, capacity options, and suspended load weighing features.
Heavy-duty crane scale for warehouses, manufacturing, logistics, loading, and material handling.
Digital crane scale for iron and steel plants, foundries, warehouses, and heavy-duty lifting.
Portable hanging scale for poultry farms, tea and coffee estates, markets, and outdoor use.
Portable suspension weighing series for meat processing, food industries, cylinder weighing, and warehouses.
Heavy-duty crane scale series for industrial plants, construction, steel, warehouses, and shipping yards.

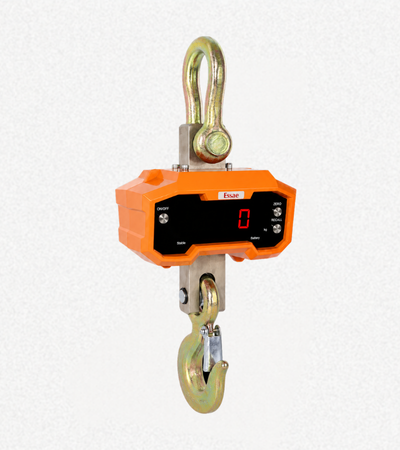

The DS-350 Crane scale is designed for accurate and reliable heavy-duty weighing in industrial and material handling environments. Suitable for warehouses, manufacturing units, logistics operations, and loading applications, this crane scale delivers stable performance for lifting and weighing heavy goods efficiently. Built with advanced weighing technology and rugged load cell support, the DS-350 ensures dependable measurement accuracy in demanding working conditions. Its integration capability with compatible weighing systems allows smooth data handling and operational management across multiple processes. Compact, durable, and easy to operate, the scale is suitable for continuous industrial usage where precision and reliability are essential.
| Power supply | 230V AC, 50 Hz |
|---|---|
| Power consumption | 10W |
| Display type & color | 7 Segment LED - Red |
| Display digit | 5 Digits |
| Display size | 30 mm |
| Number of keys | 3 Keys |
| Battery charger | External |
| Battery | 7.4 V lithium ion battery |
| Remote control | Key operation |
| Option | 2.3" Wireless remote display |
| Capacity | Accuracy | Hook size | Top hook thickness | H | H1 | K | D1 | D2 | A | B | Weight in kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 Ton | 0.5 kg | 200 | 23.5 | 455 | 120 | 36 | 53 | 45 | 127 | 42 | 9.4 |
| 3 Ton | 1 kg | 200 | 23.5 | 455 | 120 | 36 | 53 | 45 | 127 | 42 | 9.4 |
| 5 Ton | 2 kg | 250 | 25.5 | 560 | 125 | 45 | 77 | 57.5 | 160 | 47.5 | 13 |

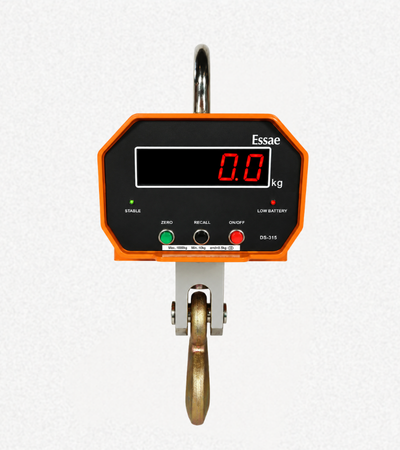

The DS-315 Digital crane scale is designed for accurate weighing of suspended heavy loads in industrial and material handling environments. Suitable for iron and steel plants, foundries, warehouses, engineering units, and heavy-duty lifting operations, this crane scale delivers reliable performance for continuous industrial usage. Built with a rugged structure and high-capacity weighing capability, the DS-315 ensures stable and precise measurement even in demanding working conditions. Its large LED display allows clear visibility during operation, while the rechargeable battery support enables uninterrupted usage for extended periods. Designed for safety, durability, and accuracy, the scale is ideal for industries that require dependable suspended load weighing solutions.
| Power supply | 230V AC, 50 Hz |
|---|---|
| Power consumption | 6W |
| Display | LED (RED) |
| Display digit | 5 Digits |
| Display size | 30 mm |
| Number of keys | 3 Keys |
| Battery charger | External |
| Battery | In-built 6V / 7Ah Rechargeable battery |
| Remote control | Key operation |
| Battery operation | 40 Hours (When battery is fully charged) |
| Capacity / Accuracy | Hook size | H | H1 | K | D1 | D2 | Thickness of top hook | Weight |
|---|---|---|---|---|---|---|---|---|
| 1 Ton / 500g | 201 | 422 | 100 | 27 | 64 | 36 | 21 | 14 |
| 3 Ton / 1 kg | 201 | 477 | 100 | 31 | 64 | 50 | 21 | 15 |
| 5 Ton / 2 kg | 256 | 572 | 115 | 48 | 74 | 60 | 27 | 21 |
| 10 Ton / 5 kg | 316 | 672 | 137 | 57 | 88 | 70 | 34 | 34 |
| 15 Ton / 5 kg | 450 | 985 | 255 | 90 | 139 | 120 | 47 | 86 |
| 20 Ton / 10 kg | 450 | 985 | 255 | 90 | 139 | 120 | 47 | 86 |
| 30 Ton / 10 kg | 560 | 1075 | 285 | 102 | 165 | 120 | 59 | 146 |

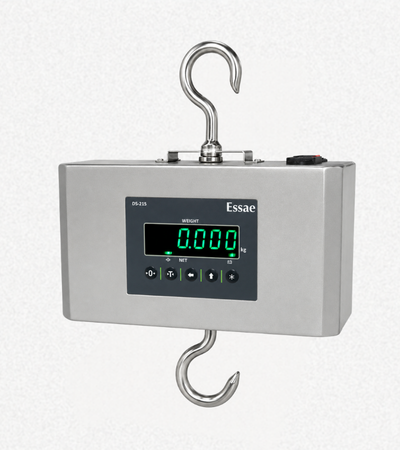

The DS-215 Hanging scale is designed for portable and accurate weighing across agricultural, commercial, and outdoor applications. Suitable for poultry farms, tea and coffee estates, markets, and general-purpose weighing environments, this hanging scale delivers reliable performance with easy handling and mobility. Built with a lightweight structure and user-friendly operation, the DS-215 supports convenient weighing in locations where portability is important. Its bright LED display ensures clear visibility, while the rechargeable battery allows uninterrupted operation in outdoor and remote environments. Compact and durable in design, the scale is ideal for businesses and field operations that require practical and dependable weighing solutions.
| Power supply | 230V AC, 50 Hz |
|---|---|
| Display colour/digit | Green / 6 Digits |
| Display size | 0.56" (14.22 mm) |
| Number of keys | 5 Keys |
| Battery | 6V / 4AH |
| Model | Platform size (mm) | Capacity (kg) | Accuracy (g) |
|---|---|---|---|
| DS-215N | 400 x 400 | 30/60 | 5/10 |
| DS-215N | 420 x 550 | 60/60/75 | 5/10/10 |
| DS-215N | 600 x 600 | 200 | 20 |
| DS-215N & DS-215SS | 505 x 550 | 100/150 | 10/20 |
| DS-215N & DS-215SS | 505 x 650 | 150/200/300 | 20/20/50 |
| DS-215N & DS-215SS | 700 x 800 | 300/600/1000 | 50/100/200 |
| DS-215N Trolley Scale | 420 x 550 | 150 | 20 |
| DS-215 Hanging Scale | NA | 15/30/60/150 | 5/10/10/50 |
| DS-215 Portable Scale | 400 x 400 | 150/300 | 20/50 |
| DS-215 Portable Scale | 500 x 500 | 300 | 50 |
| DS-215SS Concentrated Load Platform Scale | 610 x 610 | 300 | 20 |
| DS-215SS Concentrated Load Platform Scale | 700 x 800 | 300 | 50 |
| DS-215N Four load Cell Platform | 1000 x 1000 | 600/1000 | 100/200 |
| DS-215N Four load Cell Platform | 1000 x 1200 | 2000 | 500 |
The HAX Series is designed for portable and accurate suspension weighing across industrial, commercial, and outdoor applications. Suitable for meat processing, food industries, cylinder weighing, warehouses, and general hanging scale operations, this series delivers reliable performance with easy portability and user-friendly operation. Built with a lightweight structure and dual LED display system, the HAX Series ensures clear visibility for both operator and customer during weighing operations. Its rechargeable battery support, overload protection, weight hold function, and anti-shake technology make it suitable for stable performance in dynamic working environments. Designed for flexibility and durability, the series is ideal for businesses that require dependable hanging and crane weighing solutions.
| Series | Order Code | Capacity(kg) | Division | Pan Size(mm) | Hook Size | Display |
|---|---|---|---|---|---|---|
| HAX-WB Series | HAX-WB-10K5 | 10kg | 5gm | 320 x 270 | - | 0.5" Bright RED LED Display |
| HAX-WB Series | HAX-WB-20K5 | 20kg | 5gm | 320 x 270 | - | 0.5" Bright RED LED Display |
| HAX-WB Series | HAX-WB-30K10 | 30kg | 10gm | 320 x 270 | - | 0.5" Bright RED LED Display |
| HAX-HG Series | HAX-HG-10K5 | 10kg | 5gm | - | M8 | 0.5" Bright RED LED Display |
| HAX-HG Series | HAX-HG-20K5 | 20kg | 5gm | - | M8 | 0.5" Bright RED LED Display |
| HAX-HG Series | HAX-HG-30K10 | 30kg | 10gm | - | M8 | 0.5" Bright RED LED Display |
| HAX-HG Series | HAX-HG-50K10 | 50kg | 10gm | - | M8 | 0.5" Bright RED LED Display |
| HAX-HG Series | HAX-HG-100K20 | 100kg | 20gm | - | M10 | 0.5" Bright RED LED Display |
| HAX-HG Series | HAX-HG-200K50 | 200kg | 50gm | - | M10 | 0.5" Bright RED LED Display |

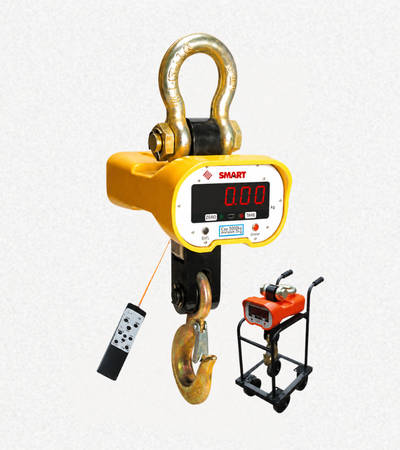

The CRAX Series is designed for heavy-duty suspension weighing applications where strength, safety, and high-capacity performance are essential. Suitable for industrial plants, construction sites, steel industries, warehouses, shipping yards, and material handling operations, this crane scale series delivers reliable weighing performance for large suspended loads. Built with a robust mechanical structure, high-tension hook system, and bright LED display, the CRAX Series ensures stable operation even in demanding industrial environments. Its remote-control functionality, overload protection, weight accumulation features, and high-capacity support make it suitable for continuous heavy-duty usage. Designed for precision and durability, the series provides dependable weighing solutions for industries handling large and bulky materials.
| Order Code | Capacity(kg) | Division | Display | Size | Accessories |
|---|---|---|---|---|---|
| CRAX-CR-05-M | 500kg | 200gm | 1.25" Bright LED Display (Red / Yellow) | Refer Catalog | Heat Shield* Spare battery, Carrying Trolley* |
| CRAX-CR-1-M | 1000kg | 500gm | 1.25" Bright LED Display (Red / Yellow) | Refer Catalog | Heat Shield* Spare battery, Carrying Trolley* |
| CRAX-CR-01-M | 1000kg | 500gm | 1.25" Bright LED Display (Red / Yellow) | Refer Catalog | Heat Shield* Spare battery, Carrying Trolley* |
| CRAX-CR-02-A | 2000kg | 1kg | 1.25" Bright LED Display (Red / Yellow) | Refer Catalog | Heat Shield* Spare battery, Carrying Trolley* |
| CRAX-CR-03-A | 3000kg | 1kg | 1.25" Bright LED Display (Red / Yellow) | Refer Catalog | Heat Shield* Spare battery, Carrying Trolley* |
| CRAX-CR-05-A | 5000kg | 2kg | 1.25" Bright LED Display (Red / Yellow) | Refer Catalog | Heat Shield* Spare battery, Carrying Trolley* |
| CRAX-CR-05-HS | 5000kg | 2kg | 1.25" Bright LED Display (Red / Yellow) | Refer Catalog | Heat Shield* Spare battery, Carrying Trolley* |
| CRAX-CR-10-A | 10000kg | 5kg | 1.25" Bright LED Display (Red / Yellow) | Refer Catalog | Heat Shield* Spare battery, Carrying Trolley* |
| CRAX-CR-1-M | 1000kg | 500gm | 1.25" Bright LED Display (Red / Yellow) | Refer Catalog | Heat Shield* Spare battery, Carrying Trolley* |
| CRAX-CR-1-M | 1000kg | 500gm | 1.25" Bright LED Display (Red / Yellow) | Refer Catalog | Heat Shield* Spare battery, Carrying Trolley* |
