Industrial Counting Scales are designed for fast and accurate piece counting in manufacturing units, warehouses, packaging industries, hardware stores, logistics operations, and inventory management applications. These scales help businesses reduce manual counting errors and improve operational efficiency during sorting, packing, and stock management processes. Equipped with precision load cells, user-friendly displays, and advanced counting functions, industrial counting scales deliver reliable performance for handling small components, bulk items, and repetitive counting tasks. Suitable for continuous industrial use, they provide accurate counting, stable weighing performance, and streamlined workflow management for commercial and industrial environments.
Explore counting scale models with technical specifications, piece counting functions, and inventory workflow support.
Counting scale for manufacturing, warehouses, quality control, packing stations, logistics, and stores.
Digital counting scale for piece counting, check weighing, inventory, dispatch, and packaging.
High-accuracy counting and weighing series for production, warehouse, packing, dispatch, and receiving.
Piece counting platform series for warehouses, production units, packing stations, and dispatch.
Tabletop counting scale for manufacturing, warehouses, logistics, retail counters, and industrial use.
High-accuracy CK 430 counting scale for warehouses, manufacturing, retail, packaging, and inventory.

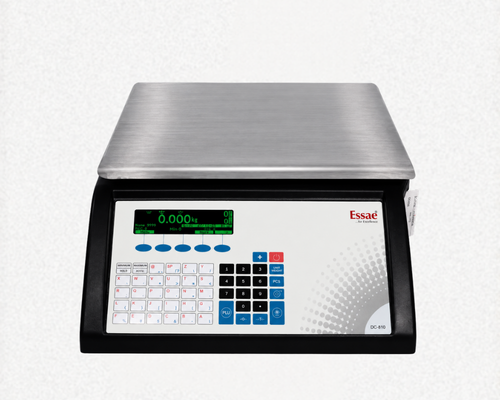

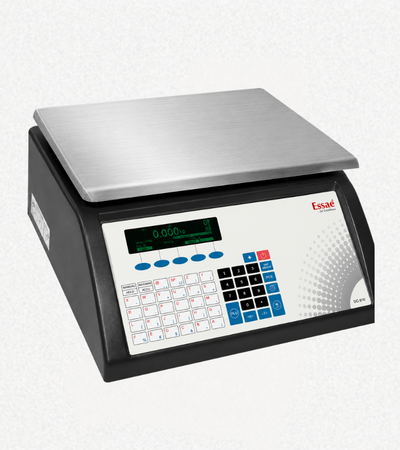

The DC-810/815 Counting scale is designed for accurate bulk counting and efficient inventory management across industrial and commercial environments. Suitable for manufacturing units, warehouses, quality control departments, packing stations, logistics operations, and stores, this counting scale delivers reliable performance for high-volume counting applications. Built with advanced counting functionality and integrated label printing support, the DC-810/815 helps streamline stock handling, packaging, and shipment processes. Its graphic display, multiple connectivity options, and high-speed printing capability improve operational efficiency while reducing manual counting errors. Designed for continuous industrial usage, this counting scale is ideal for businesses that require precision, speed, and dependable counting performance.
| Memory | 4MB Flash |
|---|---|
| Number of Keys | 55 (Mechanical type) |
| Interfaces | 1 x RS-232 Serial, 1 x Ethernet, 2 x USB port for Keyboard or Scanner support Optional: Second platform, 2 Colour Tower Lamp, Buzzer, Wi-Fi |
| Display Type | Graphic Dot-matrix LCD with back light |
| Printing Speed | 80 mm/sec |
| Label roll diameter (Max) | Outer : 120 mm Inner : 28 mm |
| Label thickness (Max) | 170 microns |
| Label width & length (Min ~ Max) | 25~54 mm, 25~110 mm |
| Physical dimension (DxWxH) | 490 mm x 360 mm x 450 mm (Table Top) |
| Type | Capacity (kg) | Accuracy (g) | Platform size (mm) | Loadcell | Frame work | Platter |
|---|---|---|---|---|---|---|
| Table Top | 6 | 0.5 | 280 x 340 | - | - | - |
| Table Top | 15 | 1 | 280 x 340 | - | - | - |
| Table Top | 30 | 2 | 280 x 340 | - | - | - |
| Four loadcell platform scale (distributed and concentrated load) | 600/1000/1500/2000/3000/5000 | 50/100/100/200/200/500 | 1000 x 1200 / 1200 x 1500 / 1500 x 1800 | Tool steel-IP67 | MS | MSC |
| Four loadcell platform scale (distributed and concentrated load) | 600 | 50 | 700 x 800 | Tool steel-IP67 | MS | MSC |
| Platform Scale | 15/30 | 1/2 | 400 x 400 | Aluminium | MS | SS |
| Platform Scale | 50/150 | 5/10 | 450 x 550 | Tool steel-IP67 | MS | SS-304 |
| Platform Scale | 150/300 | 10/20 | 550 x 650 | Tool steel-IP67 | MS | SS-304 |
| Platform Scale | 300/600 | 20/50 | 700 x 800 | Tool steel-IP67 | MS | SS/MSC |

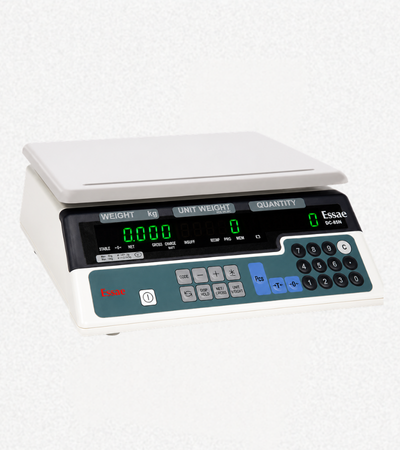

The DC-85N/851N Digital counting scale is designed for accurate piece counting, check weighing, and inventory management in industrial and commercial environments. Suitable for manufacturing units, engineering industries, automobile sectors, textile operations, warehouses, packaging units, and logistics applications, this counting scale delivers reliable performance for high-volume counting tasks. Built with advanced counting technology and integrated barcode label printing functionality, the DC-85N/851N helps streamline inventory handling, dispatch management, and packaging operations. Its clear LED display, ERP integration capability, and optional connectivity features support efficient workflow management and reduce manual counting errors. Designed for continuous industrial usage, this scale offers dependable performance for businesses requiring accurate and efficient counting solutions.
| Power supply | 230V AC, 50 Hz, +/-10% |
|---|---|
| Power consumption | 11W |
| Operating temperature / humidity | 0°C to 45°C / 85%Rh (Non-condensing) |
| Console Dimensions (Width x Depth X Height) | 304(w) x 295(d) x 115(h) mm. |
| Net weight | 3.7 Kg (Approx.) |
| Display type | LED |
| Display digit | Weight 6 digits, Unit weight 5 digits, quantity 6 digits. |
| Display size | 14mm |
| Number of keys | 4 keys(10 Numeric keys,14 Function keys) |
| Battery charger | In-built |
| Battery | Re-chargeable Lithium Ion battery 7.4V/2.2AH |
| Model | Capacity (kg) | Accuracy (g) | Platform size (mm) |
|---|---|---|---|
| DC-85N Table Top | 300 g/600 g | .02/.05 | 140 mm dia |
| DC-85N Table Top | 1.5/3/3/6/15/30/30 | 0.1/0.2/0.1/0.5/1/1/2 | 302 x 227 |
| DC-85N Bench Scale | 6/15/30 | 0.5/1/2 | 400 x 400 |
| DC-851N Single Load cell Platform | 50/60/150 | 5/5/10 | 505 x 550 |
| DC-851N Single Load cell Platform | 300 | 20 | 505 x 650 |
| DC-851N Single Load cell Platform | 300 | 20 | 700 x 800 |
| DC-851N Single Load cell Platform | 600 | 50 | 700 x 800 |
| DC-851N Four Load cell Platform | 600/1000/1500/2000/3000/5000 | 50/100/100/200/200/500 | 1000 x 1200 |
| DC-851N Four Load cell Platform | 600/1000/1500/2000/3000/5000 | 50/100/100/200/200/500 | 1200 x 1500 |
| DC-851N Four Load cell Platform | 600/1000/1500/2000/3000/5000 | 50/100/100/200/200/500 | 1500 x 1800 |

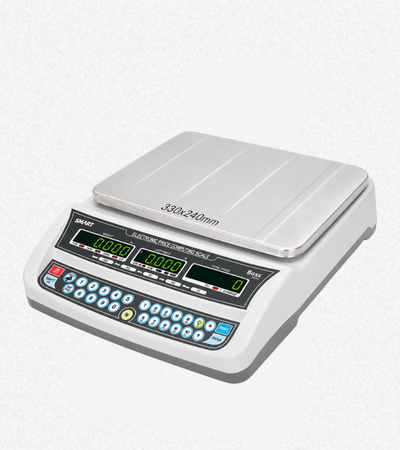

The CAX Series is designed for high-accuracy counting and weighing applications in industrial, warehouse, production, and inventory management environments. Suitable for production lines, packing stations, order processing, dispatch operations, and goods receiving areas, this counting scale delivers reliable performance with precise piece counting capability. Built with advanced counting resolution, overload protection, accumulation functions, and check weighing support, the CAX Series helps improve operational efficiency while reducing manual counting errors. Its durable stainless steel platform, water-resistant keypad, bright LED display, and rechargeable battery support make it suitable for continuous industrial usage in demanding work environments.
| Display | 0.56" large LED Display Choice of Red or VFD Green |
|---|---|
| Platter Size | 330 x 240mm |
| Accessories | Pole Display Large Platter* Printer Option* RS232 Option* 99 Memory* Date / Time* |
| Series | Order Code | Cap(kg) | Div(g) |
|---|---|---|---|
| STANDARD SERIES | CAX-BC-3K0.2 | 3 | 0.2 |
| STANDARD SERIES | CAX-BC-6K0.5 | 6 | 0.5 |
| STANDARD SERIES | CAX-BC-15K1 | 15 | 1.0 |
| STANDARD SERIES | CAX-BC-20K2 | 20 | 2.0 |
| STANDARD SERIES | CAX-BC-30K2 | 30 | 2.0 |
| STANDARD SERIES | CAX-BC-30K5 | 30 | 5.0 |
| PREMIUM SERIES | CAX-BC-3K0.1 | 3 | 0.1 |
| PREMIUM SERIES | CAX-BC-6K0.1 | 6 | 0.1 |
| PREMIUM SERIES | CAX-BC-10K0.1 | 10 | 0.1 |
| PREMIUM SERIES | CAX-BC-20K0.2 | 20 | 0.2 |
| PREMIUM SERIES | CAX-BC-30K1 | 30 | 1.0 |
| PREMIUM SERIES | CAX-BC-30K0.5 | 30 | 0.5 |

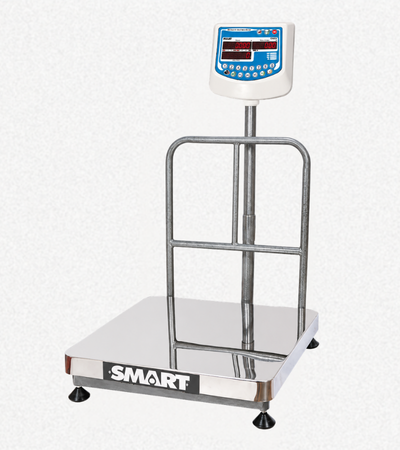

The Ti10 Piece Counting Platform Series is designed for accurate piece counting, inventory management, and industrial weighing applications across warehouses, production units, packing stations, and dispatch operations. Built for high-precision counting performance, this platform scale helps businesses improve stock control and reduce manual counting errors during bulk handling operations. Its rugged steel construction, stainless steel or MS checkered platform options, and bright LED display ensure reliable operation in demanding industrial environments. Equipped with advanced counting functions, accumulation modes, overload protection, and rechargeable battery support, the Ti10 Piece Counting Platform Series delivers dependable performance for continuous industrial usage.
| Platform Size | Capacity (kg) | Division (g) | Loadcell | Platter | Accessories |
|---|---|---|---|---|---|
| 400 x 400 | 50 / 60kg | 5 / 10gm | 1 | SS | Attached Pole Remote Display* Separate Pole* Dust Cover* Ti10-Price Computer* Ti10-Piece Counting* RS232 Option* Printer Option* |
| 400 x 400 | 100 / 150kg | 10 / 20gm | 1 | SS | Attached Pole Remote Display* Separate Pole* Dust Cover* Ti10-Price Computer* Ti10-Piece Counting* RS232 Option* Printer Option* |
| 400 x 500 | 50 / 60kg | 5 / 10gm | 1 | SS | Attached Pole Remote Display* Separate Pole* Dust Cover* Ti10-Price Computer* Ti10-Piece Counting* RS232 Option* Printer Option* |
| 400 x 500 | 100 / 150kg | 10 / 20gm | 1 | SS | Attached Pole Remote Display* Separate Pole* Dust Cover* Ti10-Price Computer* Ti10-Piece Counting* RS232 Option* Printer Option* |
| 500 x 500 | 100 / 150kg | 10 / 20gm | 1 | SS | Attached Pole Remote Display* Separate Pole* Dust Cover* Ti10-Price Computer* Ti10-Piece Counting* RS232 Option* Printer Option* |
| 500 x 500 | 200 / 300kg | 10 / 20gm | 1 | SS | Attached Pole Remote Display* Separate Pole* Dust Cover* Ti10-Price Computer* Ti10-Piece Counting* RS232 Option* Printer Option* |
| 600 x 450 | 100 / 150kg | 10 / 20gm | 1 | SS | Attached Pole Remote Display* Separate Pole* Dust Cover* Ti10-Price Computer* Ti10-Piece Counting* RS232 Option* Printer Option* |
| 600 x 450 | 200 / 300kg | 20 / 50gm | 1 | SS / MS | Attached Pole Remote Display* Separate Pole* Dust Cover* Ti10-Price Computer* Ti10-Piece Counting* RS232 Option* Printer Option* |
| 600 x 600 | 100 / 150kg | 10 / 20gm | 1 | SS / MS | Attached Pole Remote Display* Separate Pole* Dust Cover* Ti10-Price Computer* Ti10-Piece Counting* RS232 Option* Printer Option* |
| 600 x 600 | 200 / 300kg | 20 / 50gm | 1 | SS / MS | Attached Pole Remote Display* Separate Pole* Dust Cover* Ti10-Price Computer* Ti10-Piece Counting* RS232 Option* Printer Option* |
| 600 x 600 | 500 / 600kg | 50 / 100gm | 1 | SS/MS | Attached Pole Remote Display* Separate Pole* Dust Cover* Ti10-Price Computer* Ti10-Piece Counting* RS232 Option* Printer Option* |

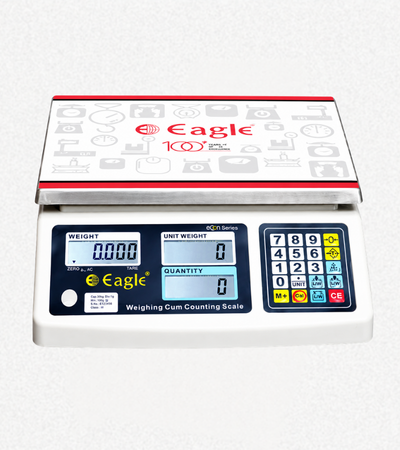

The Counting Weighing Scale | CT 410 is designed for accurate weighing and efficient piece counting across manufacturing units, warehouses, logistics operations, retail counters, and industrial environments. Built for heavy-duty usage, this tabletop counting scale delivers reliable performance for inventory management, packaging, stock handling, and dispatch operations. Its durable industrial-grade construction, precision load cell technology, and multi-window display system help streamline weighing and counting processes while reducing manual errors. Suitable for both indoor and outdoor applications, the CT 410 provides stable performance, fast response time, and dependable counting accuracy for continuous commercial and industrial usage.
| Assembly | Industrial grade ABS Material Assembly |
|---|---|
| Weight Sensor | Aluminum Loadcell - IP65 |
| Keypad | 20 keys |
| No. of Display | 3 window display |
| Display Windows | Window 1 : Total Weight, Window 2 : Unit weight, Window 3 : Total Price |
| Display Type | LCD display |
| Digit Height | 15 mm digit height in each display |
| Calibration Method | External Calibration |
| Net Weight | 3.2 kg approx (without battery) |
| Operating Humidity | 95% RH Max (Non - Condensing) |
| Over-load | 100 % Of Scale Capacity +9e |
| Safe-load | 150 % Of Scale Capacity |
| Stabalisation Time | < 4s |
| Internal Resolution | 20 Bit ADC (10,48,756 Counts) |
| Power Supply | 110 to 230 V, AC 50 Hz |
| Operating Temperature | +10 deg to +50 deg |
| Battery Capacity | Lead Acid - 6 V, 5 Ah |
| Battery Backup | Estimated 8-10 hrs on full charge |
| Mounting Type | Table Mount |

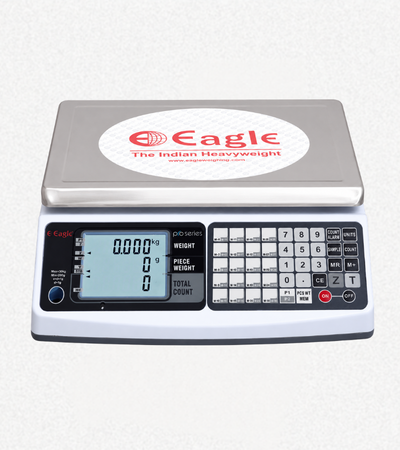

The CK 430 Counting Scale is designed for high-accuracy counting and efficient inventory management across warehouses, manufacturing units, retail stores, packaging operations, and industrial environments. Built for fast and reliable piece counting, this tabletop counting scale helps reduce manual counting errors while improving operational productivity. Its industrial-grade ABS construction, precision load cell system, and multi-segment display ensure dependable performance for continuous commercial and industrial usage. Suitable for counting lightweight components and bulk items, the CK 430 delivers stable performance, quick response time, and accurate counting results for demanding operational applications.
| Assembly | Industrial grade ABS Material Assembly |
|---|---|
| Weight Sensor | Aluminium Loadcell - IP65 |
| Keypad | 44 tactile keys |
| No. of Display | Single window display with 3 segments |
| Display Segments | Segment 1 : Total weight, Segment 2 : Unit weight, Segment 3 : Counts |
| Display Type | LCD display |
| Digit Height | 15 mm digit height in each segment |
| Calibration Method | External Calibration |
| Net Weight | 3.0 kg approx (without battery) |
| Operating Humidity | 95% RH Max (Non - Condensing) |
| Over-load | 100 % Of Scale Capacity +9e |
| Safe-load | 150 % Of Scale Capacity |
| Stabalisation Time | < 4s |
| Internal Resolution | 20 Bit ADC (10,48,756 Counts) |
| Power Supply | 110 to 230 V, AC 50 Hz |
| Operating Temperature | +10 deg to +50 deg |
| Battery Capacity | Lead Acid - 6 V, 5 Ah |
| Battery Backup | Estimated 8-10 hrs on full charge |
| Mounting Type | Table Mount |
